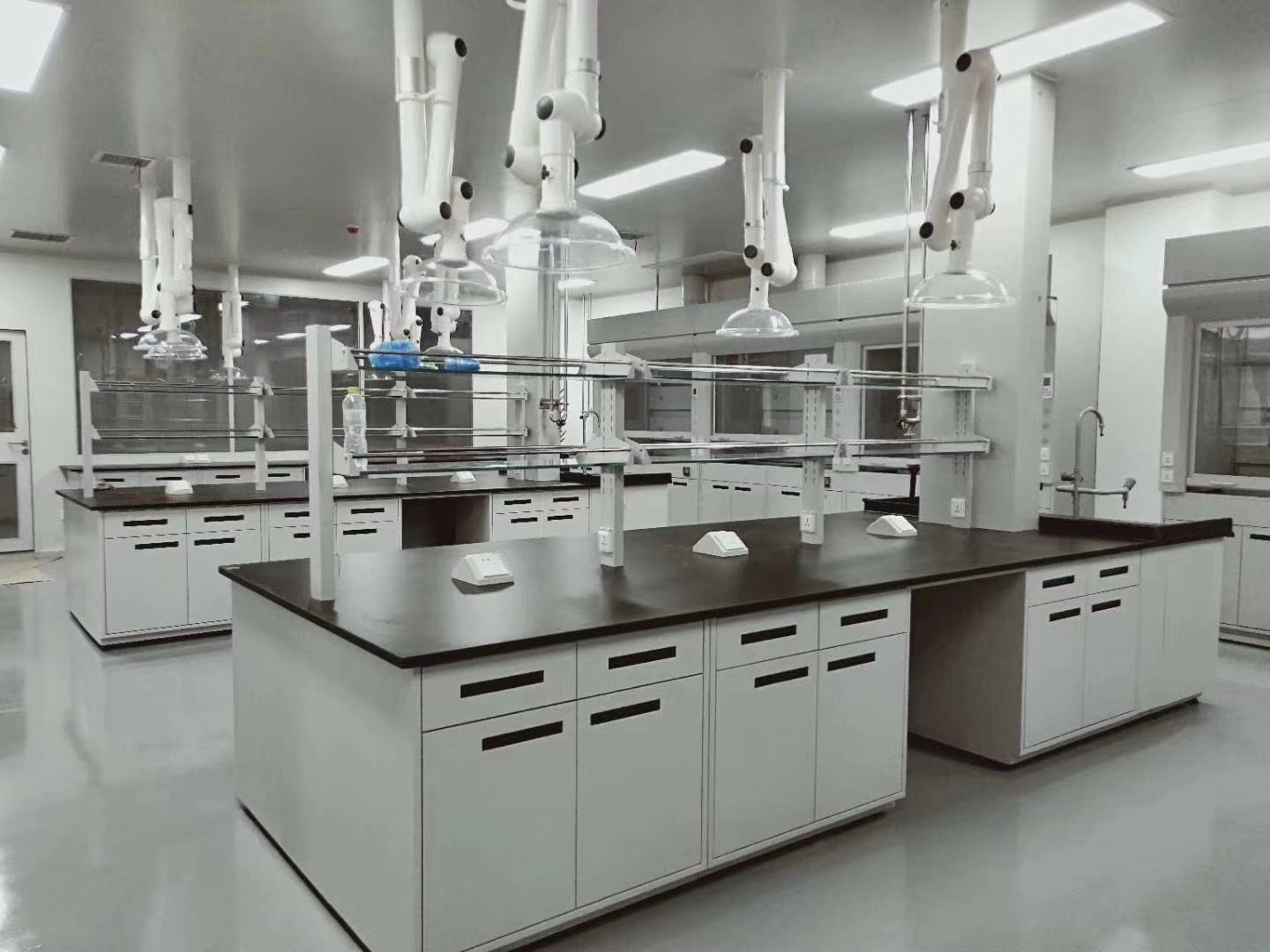

Laboratory Island Bench
The laboratory benches are also called laboratory workbenches, laboratory tables, laboratory workstations, are workbenches used by hospitals, schools, companies, chemical plants, scientific research institutes and other enterprises and institutions for experimental operation and placement of experimental instruments.
According to the placement position, they can be classified into central bench, side bench, and corner bench; according to the material, they can be classified into: all-steel laboratory bench, PP laboratory bench, steel-wood and stainless steel laboratory bench.
Laboratory benches and laboratory cabinets are the basic products of laboratory furniture. The cabinets include: fume hood (fume cupboard), medicine cabinet, reagent cabinet, vessel cabinet, hanging cabinet, safety cabinet etc.
Standard Size:
Length (mm) Width (mm) Height (mm)
Model A: 5000 1500 850
Model B: 3000 1500 850
*1. Customization available, most benches are customized base on room size.
2. reagent shelf optional, overhead cabinet optional.
3. sink, water faucet, eye wash, drying rack optional.
4. socket available.
Standard Description:
Table top:
Worktop: 19mm chemical resistant tresage worktop, heavy duty and durable .
Base cabinet:
Fully welded modular design, made of nacked thick 1.0mm cold rolled steel, with professional epoxy resin powder coating and baking, coating thickness 0.07~0.09mm on each side, total thickness after coating over 1.17mm; surface with polish treatment, smooth and flat surface; anti-corrosion and strong structure, max weight bearing 600KG.
Base cabinets could include sink cabinet, drawer plus door cabinet; doublingdoor thickess 20mm, max open approx. 220 degrees; with DDS united ganged design reinforced silent tough rails, Lab dedicated 304 stainless steel hinge and handles, adjustment feet.
Reagent Shelf:
made of nacked thick 1.0mm cold rolled steel, with professional epoxy resin powder coating and baking, coating thickness 0.07~0.09mm on each side; adjustable 10mm tempered glass shelves. Full steel shelf is optional.
Overhead cabinet (optional):
Fully welded modular design, made of nacked thick 1.0mm cold rolled steel, with professional epoxy resin powder coating and baking, coating thickness 0.07~0.09mm on each side, total thickness after coating over 1.17mm; surface with polish treatment, smooth and flat surface; 5mm glass window; anti-corrosion and strong structure.
Water service:
Strong acid resistant PP (polypropylene) sink.
Professional lab faucet, brass body epoxy powder coated, corrosion resistant, heat resistant, UV radiation protection.
Drying Pegboard and eyewash are optional.
Lab benches are modular design, modular parts are pre-welded and pre-assembled, high quality and simple installation on site.
Products are manufactured according to SEFA, CE, ISO standards.
Installation:
Modular
lab benches are modular design: base cabinets are welded and pre-assembled, benchtops are pre-proccessed, only need simple installation
on site.
Drawing
drawing will be shared and confirmed before production. Production and installation will be done strictly according to the drawing.
Guidance
installation manual and video will be provided for guidance.
