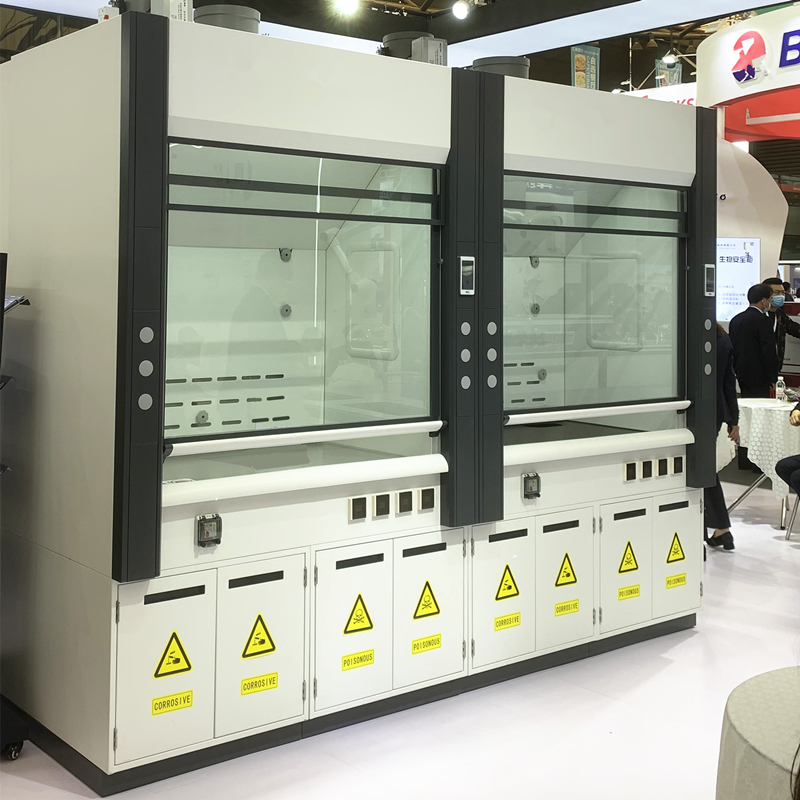

SEFA Standard Lab Fume Hood S-Grade High Quality Fume Cupboard

SEFA Standard Lab Fume Hood S-Grade High Quality Fume Cupboard
Product Model

1200*850*2350 1500*850*2350 1800*850*2350 customized sizes

Specifications select

Product Detail

S-Grade Fume Cupboard



Standard Size

Model             L            W        H          Total Height (mm)

1200             1200      850      2350         2350

1500             1500      850      2350        2350

1800             1800      850      2350        2350

Note:

              a. Above are standard size, customized available.

              b. Draught fan and pipeline are based on the installation site layout, excluded in the fume hood price.

 S-grade fume cupboards are our top quality  fume cupboards obey to SEFA，ASHRAE, ISO, CE standards.


Description

Frame case:

made of  nacked thick 1.0mm steel, with electrolytic degreasing, pickling and phosphating, then electrostatic spraying with professional epoxy resin powder, coating thickness 0.07~0.09mm, has good performance of acid and alkali resistance and anti-corrosion.


Inner lining:

made of laboratory professional phenolic compact laminate.


Air deflector:

made of laboratory professional phenolic compact laminate. Ceremic and other materials are optional.


Bench worktop:

19mm Tresage Chemical Resistant Laminate.


Base cabinet:

made of nacked thick 1.0mm cold rolled steel, with electrolytic degreasing, pickling and phosphating, then electrostatic spraying with professional epoxy resin powder, coating thickness 0.07~0.09mm, has good performance of acid and alkali resistance and anti-corrosion.


Glass window:

5mm tempered glass window can stop any place in the moving range.


Control plate:

LCD control plate.



Water service parts:

PP sink, water faucet are optional.



Installation: Modular design, fume hoods are pre-assembled before shipping, installation is very easy on site.


Draught fan and air duct are optional.
