PP Fume Hood
Introduction

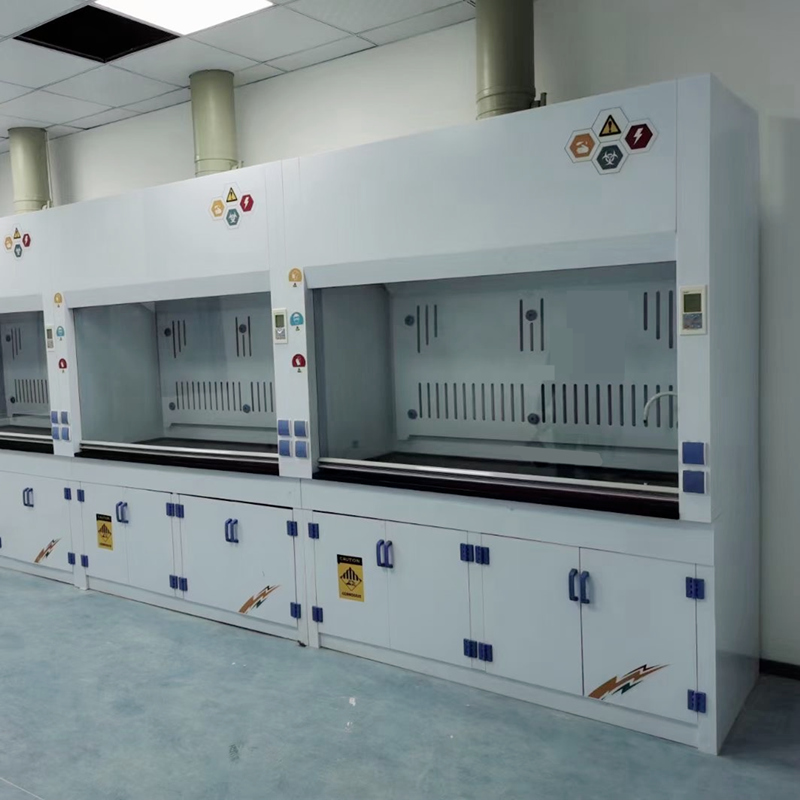

PP fume hood / fume cupboard is fume hood made of pure polypropylene panels. Because the polypropylene' chemical feature, PP furniture are excellent furniture for both strong and slight corrosive environment.
Standard Size
Model Length (mm) Width (mm) Height (mm)
1200 1200 850 2350
1500 1500 850 2350
1800 1800 850 2350
*other sizes and customized sizes are available.
Standard Description
Shell:
made of 8mm white PP board which has excellent anti-corrosion performance, with seamless welding make sure a strong compact structure and tightness.
Inner shell:
made of 8mm white PP board; with water tap, air tap is optional; wind deflector on the backboard; lamp and air collection parts on the top.
Worktop:
made of 8mm white PP board ( epoxy resin laminate, solid chemical resistant laminate and ceramic panel are optional).
Air deflector:
made of 8mm white PP board, on the backside and top of chamber, make sure air flow out equably.
Air collection hood:
cone shape collecting hood made of white PP board.
Lamp:
fluorescent lamp or LED lamp.
LCD control panel:
with buttons of power, fan, volume switch, lighting etc., with running monitor.
Viewing window:
vertical sliding window, can be set on any position; 5mm tempered glass with clear view.
Cabinet:
made of 8mm white PP board which has excellent anti-corrosion performance, with seamless welding make sure a strong compact structure and tightness.
Handle:
PP handle
Hinge:
PP hinge
Socket:
AC 220V socket.
Sink (optional):
one-piece form PP sink, acid and alkali resistant, with filtering and stink-block function.
Water faucet (optional):
1 head, 3 heads faucet or other faucet are available, remote control available.
Air tap(optional):
remote control available.
Exhaust System (optional)
Air speed: fume hood air speed 0.4m/s~0.7m/s.
Noise: running noise should be below 65dB.
Draught fan: centrifugal fans or other fans are optional.
